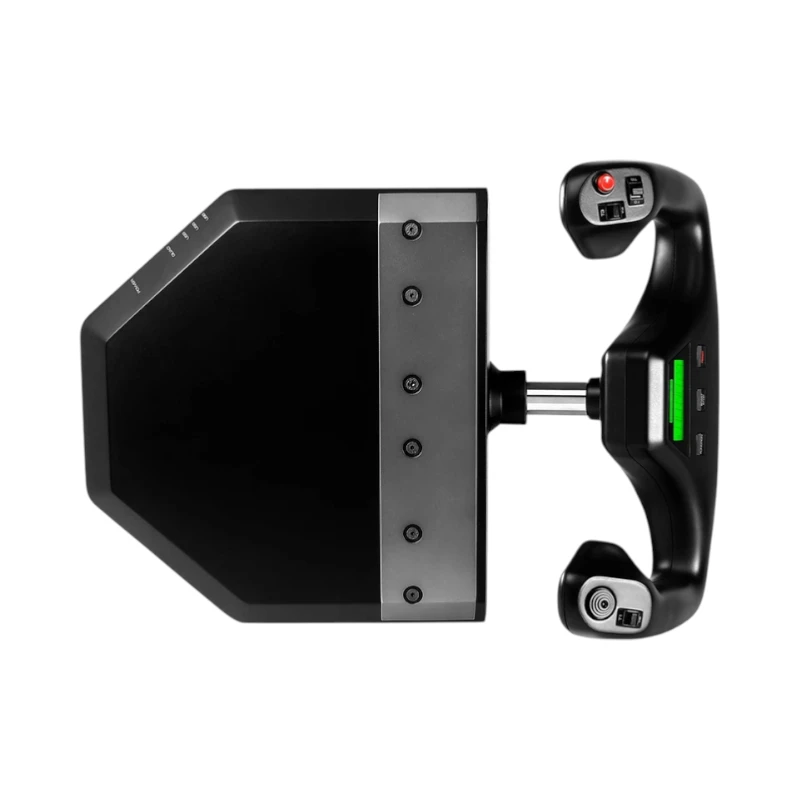

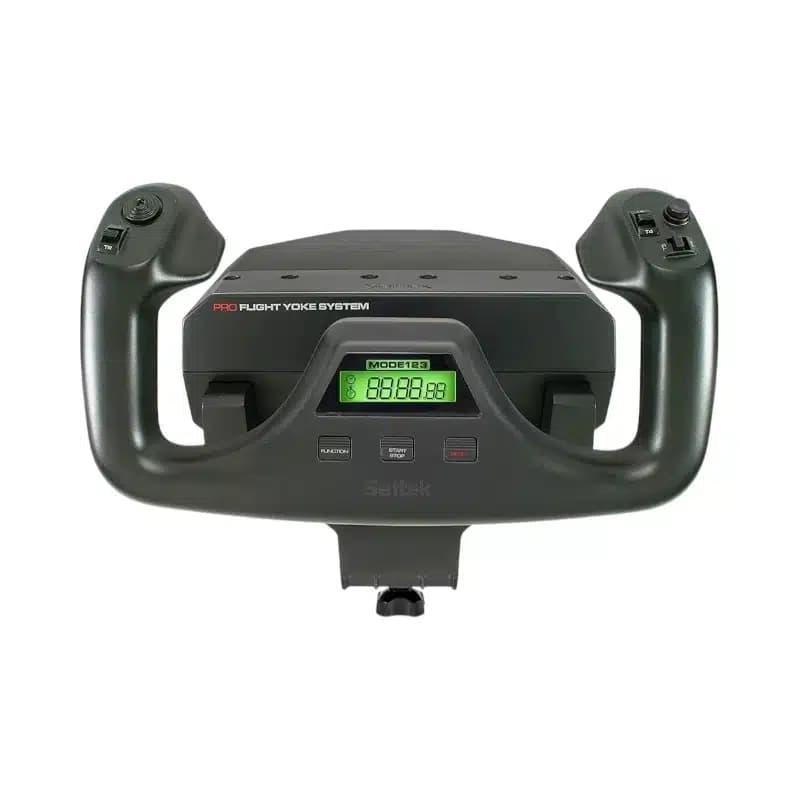

Logitech Flight Yoke System

Specification	Details
Product Name	Logitech G Flight Yoke System
Model Number	945-000023
Compatibility	Windows PC (Win 7, 8.1, 10, 11)
Connection	Wired USB 2.0 (yoke); PS/2 to yoke for throttle
System Requirements	USB 2.0 port; internet for optional software
Axes	5 total (e.g., pitch, roll, throttle, mixture, prop)
Buttons & Switches	17 built-in buttons and switches on yoke & quadrant
Programmable Controls	Up to 75 user-definable functions via 3 profiles
USB Cable Length	Yoke: ~1.8 m (5.9 ft); Quadrant: ~1.5 m (4.9 ft)
Yoke Dimensions	464 × 310 × 185 mm (W×D×H)
Quadrant Dimensions	175 × 175 × 90 mm (W×D×H)
Yoke Weight	~1775 g (62.6 oz)
Quadrant Weight	~501 g (17.7 oz)
Mounting Hardware	2x desk clamps included
Warranty	2-year warranty

Realistic Flight Control

The Logitech Flight Yoke System offers five axes of control, providing intuitive inputs for elevator (pitch), aileron (roll), throttle, mixture, and propeller pitch. Its robust yoke delivers smooth, precise movement and strong responsiveness suitable for everything from general aviation to commercial aircraft simulators.

Modular Throttle Quadrant

Included with the yoke is a separate throttle quadrant that features three levers for throttle, mixture, and propeller control, complete with physical detents for idle and reverse thrust settings. You can also configure additional throttle quadrants for multi-engine aircraft setups.

Programmable Controls & Profiles

The Logitech Flight Yoke System and throttle offer 25 programmable buttons, switches, and axes that can be mapped to any flight simulator function. With three profile settings (via a mode switch), you can configure up to 75 user-definable controls to suit different aircraft or simulation styles.

Durable Build & Mounting

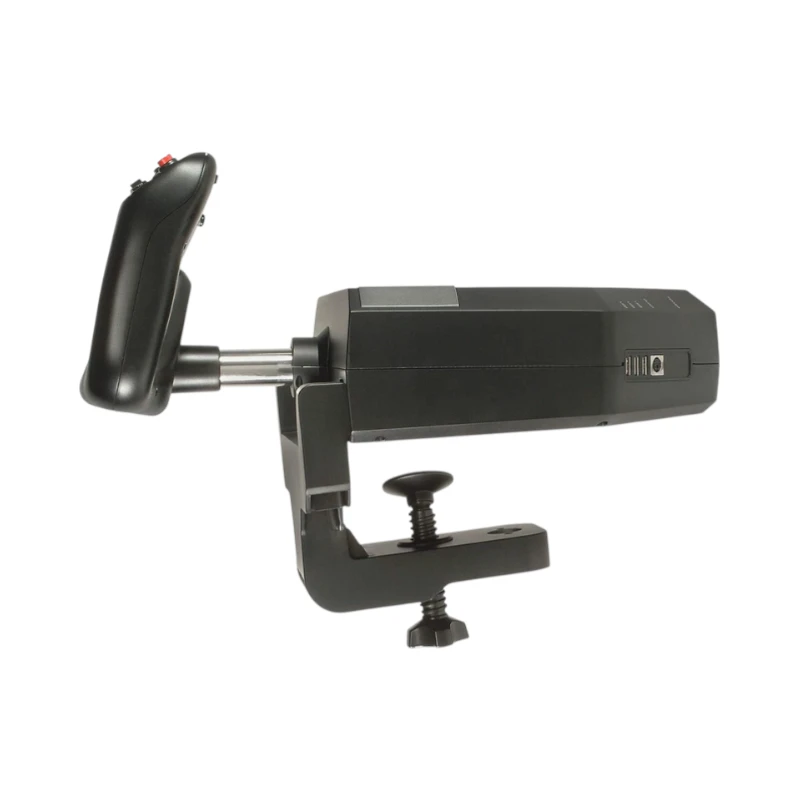

The Logitech Flight Yoke System is constructed with a stainless steel yoke shaft and precision bearings for reliable performance, this system also includes adjustable desk clamps to securely mount the hardware in a fixed position, whether on a desk or within a custom simulator cockpit.

Compatibility & Software

The Logitech Flight Yoke System is compatible with a wide range of flight simulator software, including Microsoft Flight Simulator, X-Plane, Prepar3D, and many others that can recognize standard USB joystick inputs. While plug-and-play functionality works with most titles, optional software and driver downloads can expand customization and profile management.

Box Contents

• Logitech G Flight Yoke System with Throttle Quadrant
• Yoke USB cable (~1.8 m)
• Throttle quadrant cable (~1.5 m)
• 2 desk clamps
• User documentation
• Warranty information
