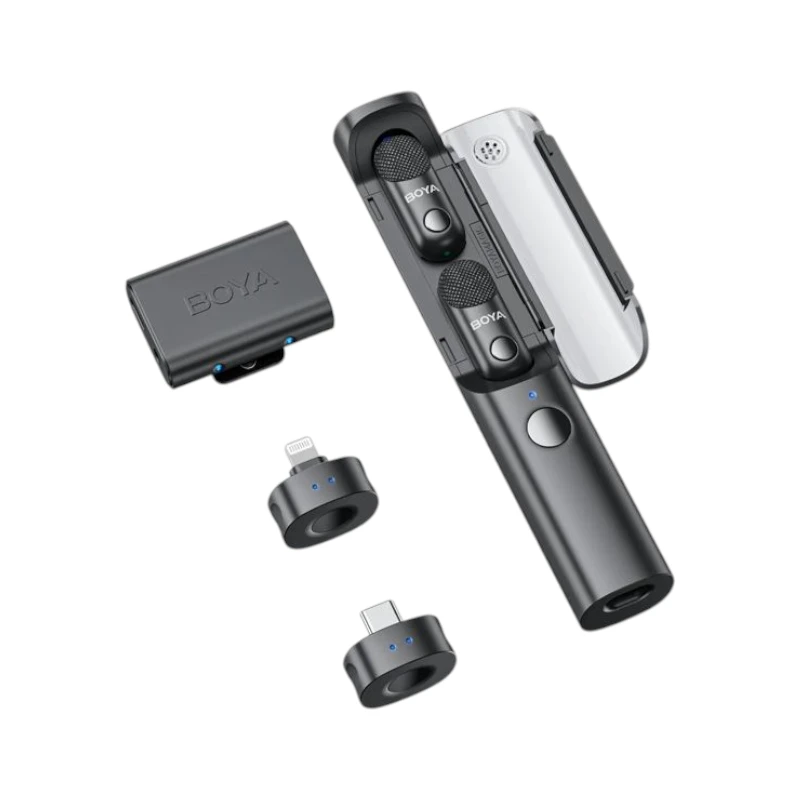

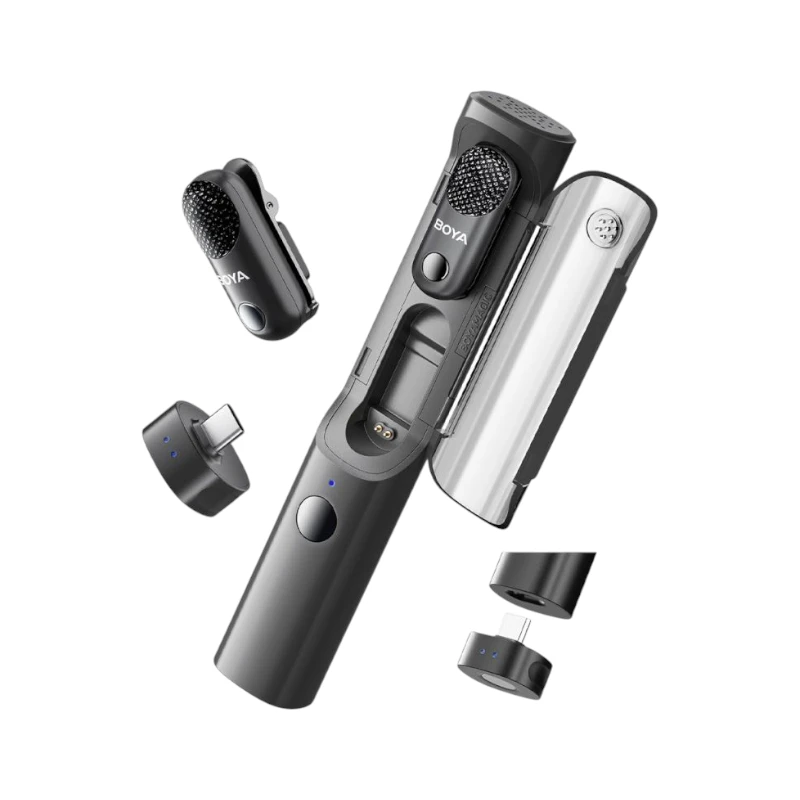

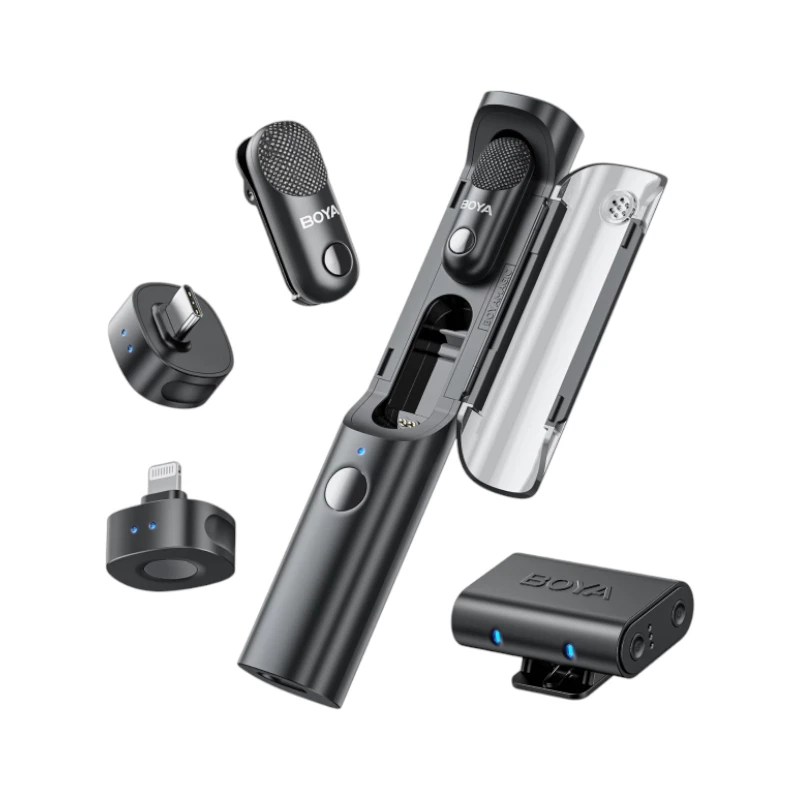

BOYA Magic-02 Wireless Microphone

Specification	Details
Model Name	BOYA Magic‑02 (part of BOYA Magic series)
Transmission Type	2.4 GHz digital wireless
Transmission Range	Up to 100 m line-of-sight
Modulation	GFSK
Noise Cancellation	True AI (Strong / Light mode), up to –40 dB suppression
Sample Rate / Bit Depth	48 kHz / 24-bit
Signal-to-Noise Ratio (SNR)	~80 dB
Dynamic Range	~144 dB
Frequency Response	20 Hz – 20 kHz
Maximum SPL	~115 dB (or “>115 dB”)
Output Modes	Mono / Stereo / Safety Track (–12 dB backup track)
Limiter	Smart limiter to prevent clipping
Latency	~15–20 ms (approx.)
Transmitter (TX) Weight	~7 g
Transmitter Dimensions	35 × 15.2 × 13 mm
Battery (TX)	Built-in lithium-ion, ~95 mAh
Battery Life (TX)	≥ 6 hours per charge
Charging Time	~2 hours (charging case)
Charging Case Capacity	~200 mAh
Case Operating Time	Up to 30 hours total (with charging case)
Receiver Types	3.5 mm TRS, USB‑C, Lightning
Receiver Weight	USB-C / Lightning RX: ~5 g 3.5 mm TRS RX: ~16 g
Charging Case Weight	~62.5 g
Clip Type	Metal, non-rotatable
Built-in Mic Type	Condenser capsule
App Control	BOYA Central app (noise canceling, EQ, gain, firmware)

Key Features

• 4-in-1 Transformable Design: The BOYA Magic-02 Wireless Microphone transforms into four modes; clip-on, handheld, desktop, or on-camera.
• True AI Noise Cancellation: Uses deep learning to suppress up to –40 dB of ambient noise in “Strong” mode or –15 dB in “Light” mode.
• High-Resolution Audio: Records in 48 kHz / 24-bit with a wide dynamic range
• Smart Safety Features: Built-in smart limiter + safety track ensures consistent, safe audio even in sudden peaks.
• Long Range & Low Latency: Stable 2.4 GHz transmission up to ~100 m with low latency (~15–20 ms).
• Extended Battery Life: Each transmitter runs for ~6 hours, and the charging case boosts total usage up to ~30 hours.
• All-in Connectivity: The BOYA Magic-02 Wireless Microphone receiver supports multiple outputs; USB-C, Lightning, and 3.5 mm TRS, making it compatible with cameras, phones, and computers.
• App-Based Control: Adjust AI cancellation strength, EQ, and gain via the BOYA Central mobile app.

Audio Quality

The BOYA Magic-02 Wireless Microphone captures pristine audio with its 48 kHz / 24-bit resolution and broad frequency response (20 Hz – 20 kHz). Its 80 dB signal-to-noise ratio and 144 dB dynamic range ensure detailed, low-noise voice capture, whether you’re speaking softly or raising your voice.

Noise Cancellation

The BOYA Magic-02 Wireless Microphone features deep-learning AI built in that effectively reduces background noise. Choose Strong mode for very noisy environments (up to –40 dB suppression) or Light mode for milder ambient sounds (–15 dB), while retaining natural tonal quality.

Flexibility / Forms

The BOYA Magic-02 Wireless Microphone, thanks to its transformable 4-in-1 design, works in multiple formats:

• Clip-On (Lavalier), discreetly clip to clothing
• Handheld Interview Mic; use the charging case as a grip
• Desktop Mic; set it on a table for 360° capture
• On-Camera Mic; mount on cold shoe for compact, versatile shooting

Compatibility

The BOYA Magic-02 Wireless Microphone is compatible with a wide range of devices:

• Smartphones (iOS/Android), via USB-C or Lightning
• Cameras, DSLRs, Mirrorless, via 3.5 mm TRS
• Computers / Tablets, USB-C or audio jack
• Desktop & On-Cam Use, with the transformable design
